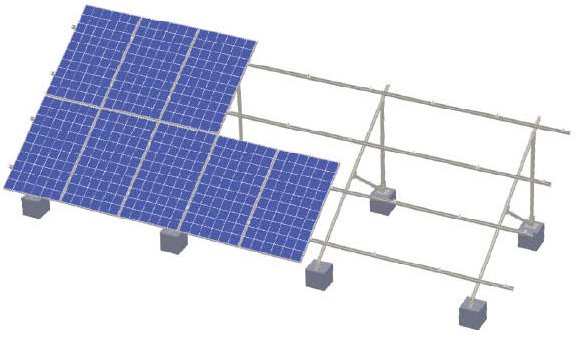

Cubic Concrete Foundation


Series Name: CF-IV


Technical Data:

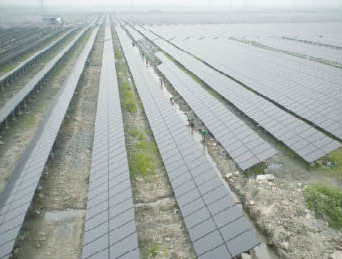

  • Solar system: PV plant, PV park, open area ground PV system

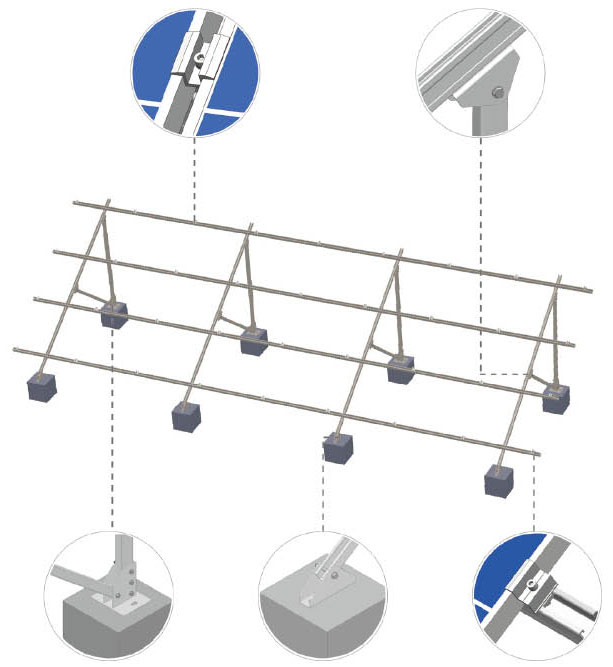

  • System type: ground concrete foundation

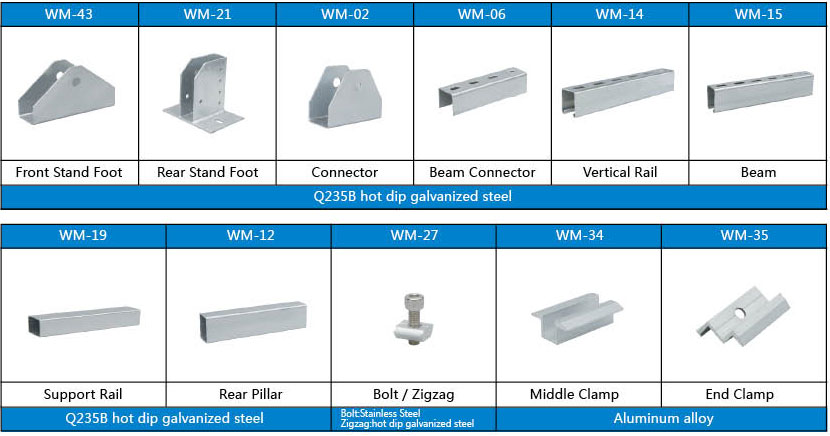

  • Material Option: hot-dip galvanized steel, Aluminum ,Stainless Steel

  • Max snow load: 1.0 kn/㎡

  • Max wind load: 35 m/s

  • Mounting angle: customized design; fixed

  • Module: framed crystalline module, unframed thin film module

  • Module connection: no clamp required, module fixed directly on structure

  • Average thickness of zinc layer: up to 80 um or customized


Features:

  • Easy & quick installation

  • High Robust, stable & durable

  • Fit to shallow, sea beach site

  • Fit to the country where concrete cost is low

  • Fit to strong wind, heavy snow area

  • Maximum module array vertically & horizontally

  • 25 years anti corrosion warranty



Download

CF-IV.pdf
