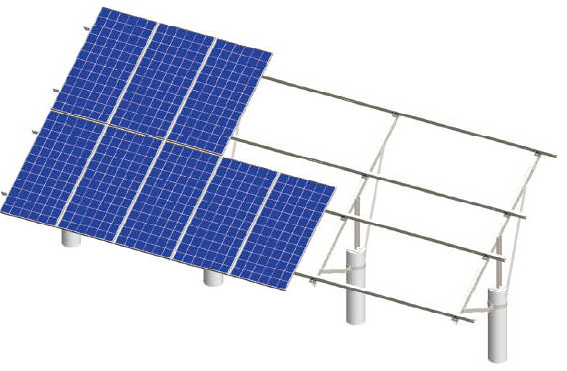

Cylinder Concrete Foundation


Series Name: CF-III


Technical Data:

  • Solar system: PV plant, PV park, open area ground PV system

  • System type: ground concrete foundation

  • Material Option: hot-dip galvanized steel, Aluminum ,Stainless Steel

  • Max snow load: 1.0 kn/㎡

  • Max wind load: 30 m/s

  • Mounting angle: customized design; fixed

  • Module: framed crystalline module, unframed thin film module

  • Module connection: no clamp required, module fixed directly on structure

  • Average thickness of zinc layer: up to 80 um or customized


Features:

  • Easy & quick installation

  • Robust, stable & durable

  • Fit to shallow, sea beach site

  • Fit to the country where concrete cost is low

  • Maximum module array vertically & horizontally

  • 25 years anti corrosion warranty



Download

CF-III.pdf
