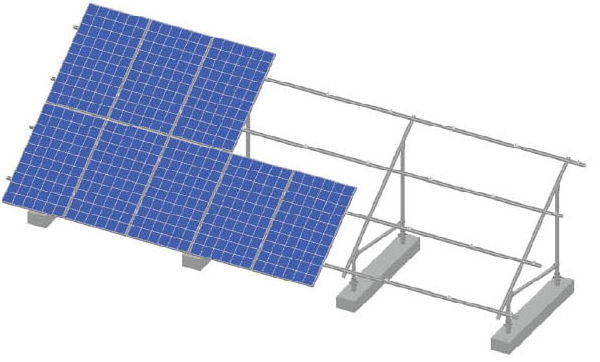

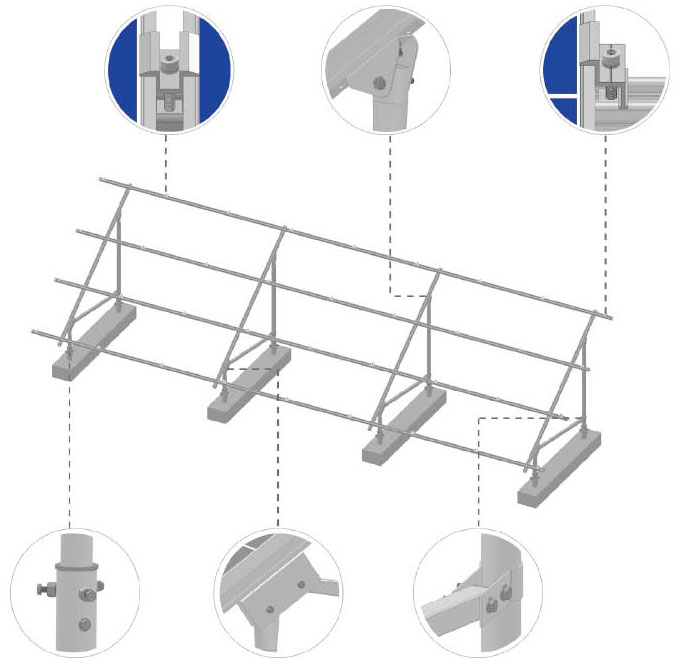

Tube Connection Cuboid

Concrete Foundation


Series Name: CF-II


Technical Data:

  • Solar system: PV plant, PV park, open area ground PV system

  • System type: ground concrete foundation

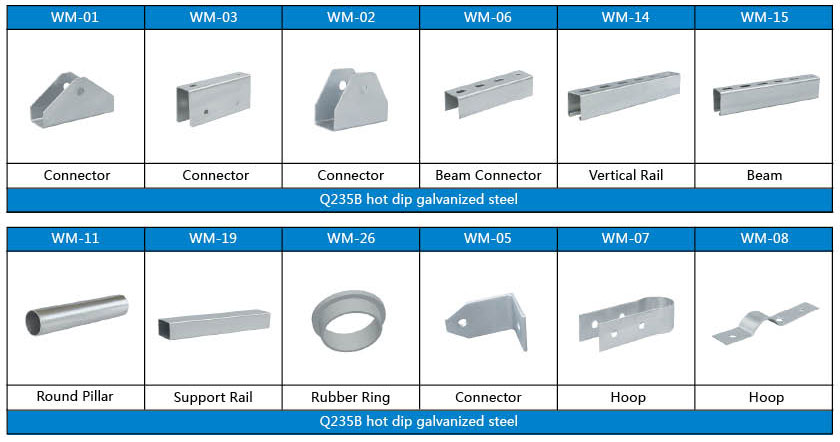

  • Material Option: hot-dip galvanized steel, Aluminum ,Stainless Steel

  • Max snow load: 1.0 kn/㎡

  • Max wind load: 38 m/s

  • Mounting angle: customized design; fixed

  • Module: framed crystalline module, unframed thin film module

  • Module connection: middle & end clamp

  • Average thickness of zinc layer: up to 80 um or customized


Features:

  • Easy & quick installation

  • High robust, stable & durable

  • Cementing base at the site making sure even structure array

  • Fit to the country where concrete cost is low

  • Fit to different soil condition, like soft grassland, rock & stony soil, gobi, desert, macadam

  • Fit to hurricane wind, heavy snow area

  • Maximum module array vertically & horizontally

  • 25 years anti corrosion warranty



Download

CF-II.pdf
