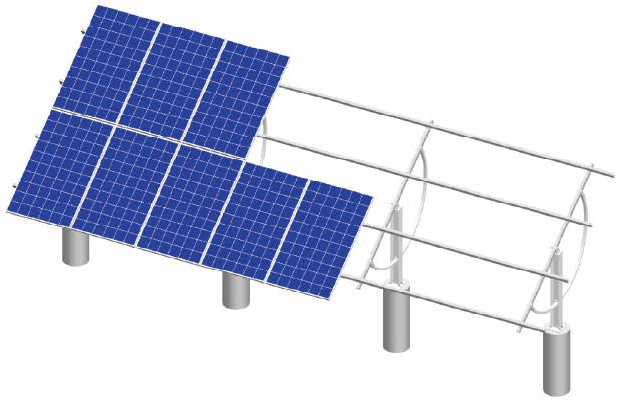

Adjustable Tilt Angle


Series Name: AD-I


Technical Data:

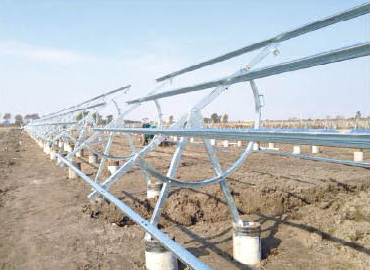

  • Solar system: PV plant, PV park, open area ground PV system

  • System type: ground screw or concrete foundation

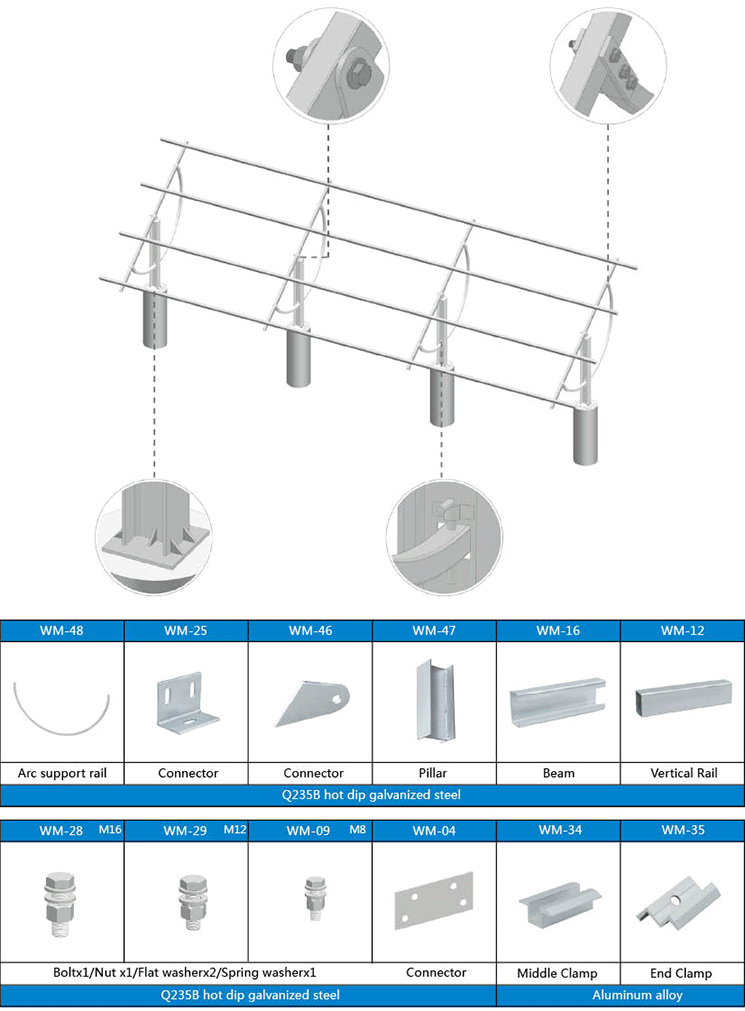

  • Material Option: hot-dip galvanized steel, Aluminum ,Stainless Steel

  • Max snow load: 0.8 kn/㎡

  • Max wind load: 32 m/s

  • Mounting angle: customized design; fixed

  • Module: framed crystalline module, unframed thin film module

  • Module connection: no clamp required, module fixed directly on structure

  • Average thickness of zinc layer: up to 80 um or customized


Features:

  • Adjustable tilt angle from 25-40°

  • Maximize module power generation

  • Fit to breeze, large direct sunshine angle change area

  • High robust, stable & durable

  • Base: screw or concrete foundation

  • Module array vertically & horizontally

  • 25 years anti corrosion warranty
