Home > One axle

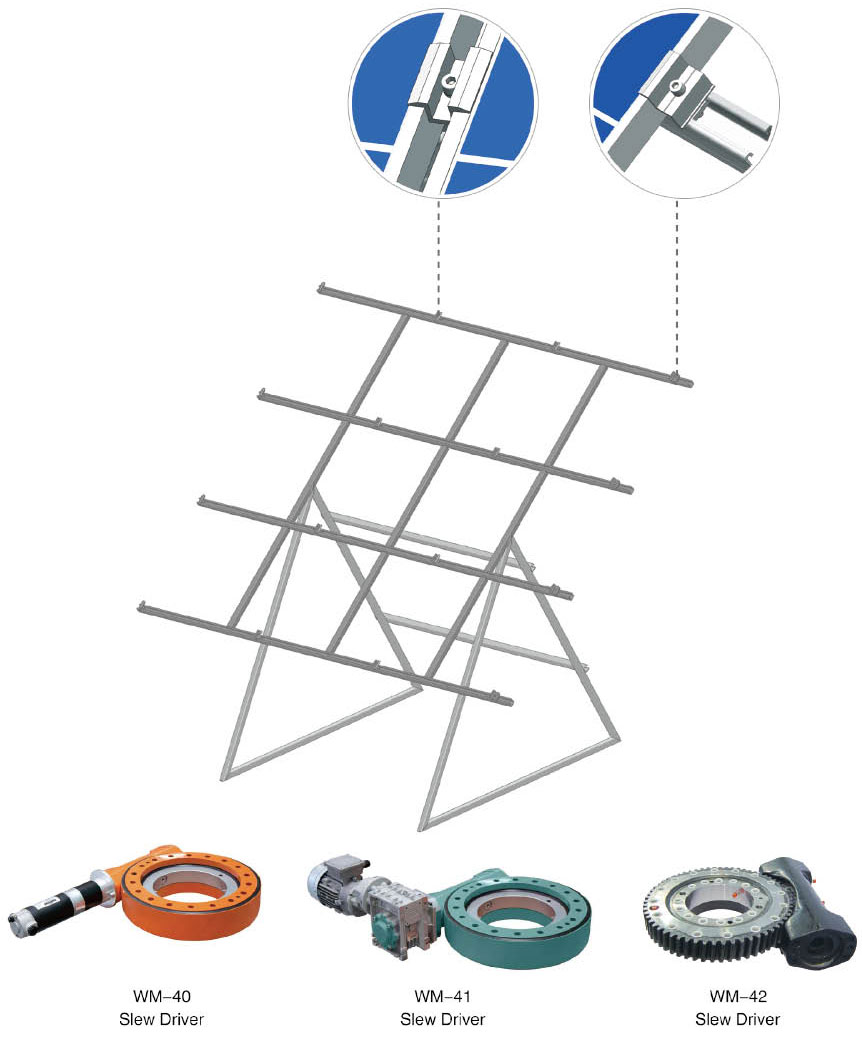

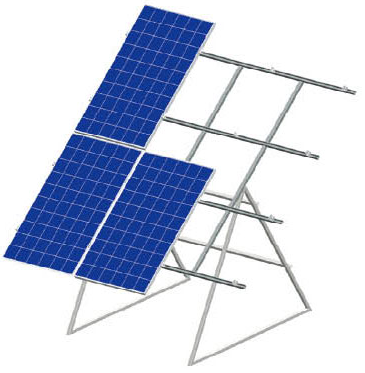

Single Axle Tracking System


Series Name: TS-S


Technical Data:

  • Solar system: PV plant, PV park, open area ground PV system

  • Unit System capacity : 5KW~15KW

  • Solar module: 20~60pcs x 250W poly module (1650*992*40mm)

  • Structure material: hot-dip galvanized steel

  • Average thickness of zinc layer: up to 80 um

  • Rotation angle: +/-45 degree

  • Tracking accuracy: <=0.1 degree

  • Wind speed for safe operation:<90 km/h (25m/s)

  • Maximum anti wind speed:<145 km/h (40m/s)

  • Controlling part : PLC

  • Protection level: IP65

  • Driving motor: 24V DC (or 3000 RPM)

  • Working condition: -35 degree to 65 degree

  • Mechanical structure lifespan: 25years



Features:

  • Automatic tracker, follow sun movement precisely & maximize module energy output

  • Produce 20% to 30% more power than fixed system

  • Wide rotation angle from -45 degree to 45 degree

  • Automatically adjust to horizontal position to avoid strong wind

  • No oil, high technology polymer material bearing to against rain, sand and water corrosion

  • Auto track, auto reset, auto avoid shadow

  • Easy installation & low maintenance

  • Warranty: structure 10 years, electric controlling part 1year

  • 25 years anti corrosion warranty



Download

TS-S.pdf
